Corrosion Resistant Paint Using Nano-Carbon

Electrical Research and Development Association (ERDA)

Various types of coatings are applied for protection against corrosion. However, still the material loss due to corrosion is substantial. Hence, development of new coatings with higher resistance is reuired. In view of this, ERDA has developed a corrosion resistant paint incorporating nano-carbon by novel mixing technique. This may be formulated from any type of existing conventional epoxy base paint with addition nano-carbon.

Highlights of Technology

01

Specification of the corrosion paint developed

  • Higher corrosion resistant

    Electrochemical Impedance Spectroscopy (EIS)
    Paint Impedance Corrosion rate (mpy)
    As received paint 870 MΩ 4.045
    Paint developed at ERDA 4.7 GΩ 266.7 x 10-6
  • Salt spray test

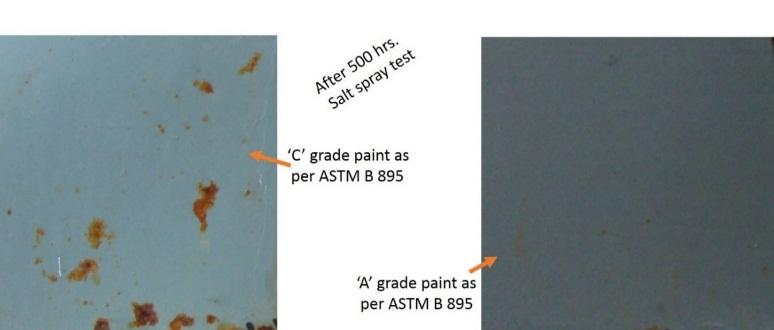

    Corrosion resistance of newly developed paint was compared with conventional paint through Salt-spray testing as per ASTM B117 using 5% Sodium Chloride solution. After an exposure of 500 hours both the samples were evaluated for area of rust formation and rated as per ASTM B 895. It is seen that a ‘C’ grade paint can be upgraded to ‘A’ grade paint by incorporating nano-carbon in the ‘C’ grade paint. (Ref. Fig. given below)
  • Mechanical Properties

    The mechanical properties measured as per ASTM standard methods indicate that the mechanical stability of the paint developed is better than that of conventional paint used as base paint for blending.
    Paint Scratch Hardness (kg) Pull off adhesion (MPa) Impact Hardness (inch.lb/kg)
    As received paint 2.7 0.56 17
    Paint developed at ERDA 4.2 0.63 23
01

Salient features of the process developed

  • Formulation: Existing (conventional) paint filled with nano-carbon and mixed by novel technique
  • Improved mechanical properties such as Scratch Hardness, Pull-off adhesion and Impact hardness
  • Better corrosion resistance than conventional paint
01

Patent Granted

Indian Patent No. 422128
